Desktop GUI
egui-based desktop client for LUKSbox - same Container core as the CLI, plus a click-driven UI.
LUKSbox ships a desktop GUI alongside the CLI. Same on-disk format, same crypto stack, same FIDO2 / TPM 2.0 / Secure Enclave / hybrid-PQ keyslots; just a click-and-type interface for users who don't live in a terminal.
The GUI is a single-file binary (luksbox-gui) built on
egui - immediate-mode, no Electron,
no embedded browser. Cross-platform: same source, same look on
Linux, macOS, and Windows.
What's in this section
| Page | Covers |
|---|---|

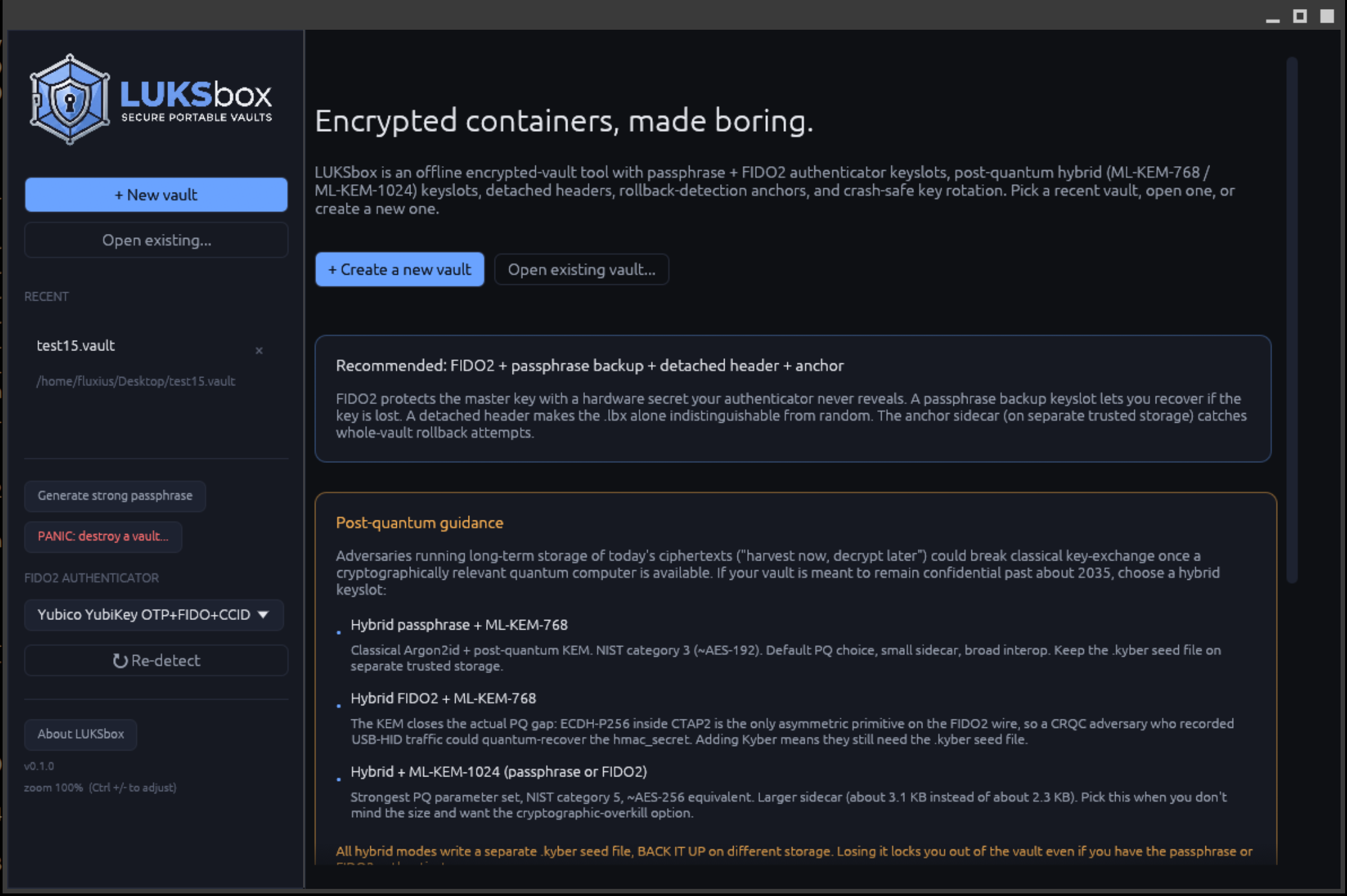

| Welcome screen | Landing page and sidebar; recent vaults (forget, delete) |
| Creating a vault | The Create form: keyslot factor and variant, cipher, KDF, vault size, header format, deniable mode |
| Unlocking a vault | Picking the unlock method from the vault's keyslots; passphrase, FIDO2, TPM 2.0, Secure Enclave, hybrid-PQ and deniable unlock |
| Browsing files | File list, drag and drop import, move and rename, extract, delete, vault size, mounting |
| Managing keyslots | Adding / revoking / rotating keyslots; header format upgrade; deniable keyslots; TPM SRK pinning |
| Panic mode | Emergency vault destruction (luksbox panic from the GUI) |
The GUI also exposes deniable mode (a vault format whose on-disk bytes are indistinguishable from random output) as a checkbox in the Create form and another in the Sidecars section of the Unlock view. See the Create, Unlock and Keyslots pages for the specific fields the deniable path adds.
Requirements
Same as the CLI:
- Linux:
libfido2,libfuse3(for the optional in-GUI mount feature), and the XDG desktop portal (orzenityas a fallback) for the system file dialogs. The AppImage (0.6.0+) runs the GUI on any glibc 2.35+ distribution without installing it (mounting still needsfusermount3). - macOS: FUSE-T or macFUSE for mount, depending on which
.dmgyou install; everything else bundled in the.dmg - Windows: WinFsp for mount; everything else bundled in the
.msi
See Install on your platform for the download + dependency setup.
When to use the GUI vs the CLI
| Use the GUI when | Use the CLI when |
|---|---|
| You want a click-driven workflow | You're scripting / automating |
| You want to mount the vault as a Windows / Linux / macOS volume and drag-and-drop files in Explorer / Finder | You want stdin-pipe passphrase entry |
| You want to see the keyslot table visually | You want the luksbox binary on PATH |
| You're onboarding a non-technical user | You need every flag (some advanced options are CLI-only for now) |
Both tools work against the same .lbx files - you can create with
the GUI and operate via the CLI later, or vice versa.
Launching the GUI
luksbox-gui # default
luksbox-gui /path/to/my.lbx # open a vault directly (skip Welcome)
On Linux desktops with a .desktop entry, double-clicking a
.lbx file launches the GUI with that file pre-loaded. Same on
macOS via the .dmg's file association registration.
- Welcome screen The landing view and the sidebar: create a vault, open one, or pick from recent vaults.
- Creating a vault The Create form: vault file, keyslot factor and variant, cipher, KDF, vault size, hardening and header format, deniable mode.
- Unlocking a vault Passphrase, FIDO2, TPM 2.0, Secure Enclave, hybrid-PQ and deniable unlock from the GUI.
- Browsing files File list, drag and drop, moving and renaming, extract, delete, vault size and mounting from inside the vault.
- Managing keyslots Add, revoke and rotate keyslots, upgrade the header format, deniable keyslots, TPM storage root key pinning.
- Panic mode Emergency vault destruction from the GUI.
